TL-VCB6000: Digital discussion + simultaneous interpretation + voting

Digital Desktop Microphone System with Internal Loudspeaker, Headphone Monitoring and Pluggable Stem

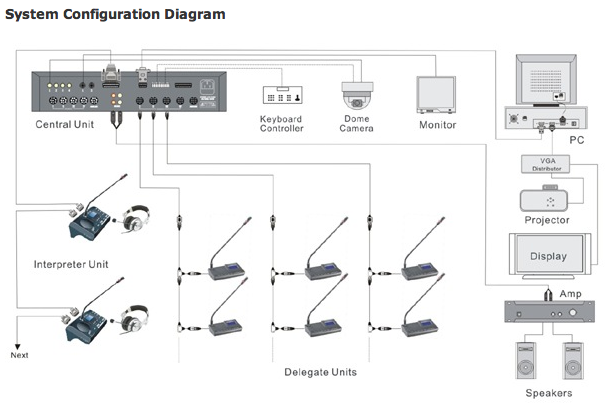

TL-VCB6000 digital conference system offers a multi-functional integrated conferencing solution that combines microphone management, delegate discussion, electronic voting, simultaneous interpretation, language distribution, attendance registration, chairman priority, LCD display, built-in loudspeaker, headphone monitoring, chipcard reading, video switching, camera tracking, digital recording and software control.

The basic system on one central control unit supports up to 60 delegate units and 5 interpreter units, and can be expanded to 200 delegate units with additional extension units.

Multiple control units can be cascaded together to support up to 1000 delegate units. It can seamlessly interface with infrared or DSSS wireless transmission systems to provide simultaneous interpretation for additional participants.

Three selectable microphone modes are available for delegate discussion:

• OPEN - allows to select the number of delegate microphones from 1 to 4 which can be simultaneously active. The delegate microphones more than the preset number cannot be activated and are unable to register a request to speak.
• FIFO - allows to select the number of delegate microphones from 1 to 4 which can be simultaneously active. On a FIFO (first in first out) basis, any delegate can override another delegate simply by activating the microphone, but cannot override the chairperson.
• OPERATOR - allows to select the number of delegate microphones from 1 to 4 which can be simultaneously active. Up to 8 delegates more than the preset number can register a request and wait to speak, and can be switched off manually to cancel the request.

Features without PC/software control:

# 1 chairman & 10 vice-chairman units can be used in a system
# Chairman/vice-chairman units can be active at any time
# Simultaneous active delegate microphones from 1 to 4
# Chairman unit can override/mute all the active delegate units
# Delegates can select 6 channels for 6 different languages
# LCD display of conference and user-related information
# Up to 4 dome cameras can be supported to track the speaking delegate

Features with operator/software control:

* Centralized microphone management
* Chipcard reading for user identification
* Attendance registration using IC card or mic button
* Two registration modes - dynamic and countdown
* Operator control over delegate request-to-speak list
* 1 chairman & 10 vice-chairman units can be used in a system
* Chairman/vice-chairman units can be active at any time
* Simultaneous active delegate microphones from 1 to 4
* Chairman unit can override/mute all the active delegate units
* Delegates can select 6 channels for 6 different languages
* Delegate speaking time limit can be preset or controlled by operator
* Attendance registration by inserting IC card or pushing MIC button
* Dynamic registration mode and countdown registration mode
* LCD display of conference and user-related information
* Up to 4 dome cameras can be supported to track the speaking delegate
* HDD (hard disk drive) recording via PC/software

Different voting types and options:

-Parliamentary voting, ordinary election, multi-choice: YES/NO/ABST
- Quick election: 1/2/3/4/5
* Dynamic voting mode or countdown voting mode
* First keypress valid mode or last keypress valid mode
* Display of voting procedures & results on terminal LCD and hall screen

Three microphone modes are available for delegate discussion:

• Request to Speak - allows to set the number of simultaneous active delegate microphones from 1 to 4. The delegate microphone cannot be activated until a registered request is allowed by the operatot or chairperson.
• Wait to Speak – the first delegate to push the MIC button gets the floor and the other delegates have to wait in queue. Only one delegate is allowed to speak at one time.
• Free to Speak – the first 4 delegates who request to speak can push to talk freely. The next one cannot be active until the last one is turned off.

•Lightweight headphones for under the chin use • Fitted with 1.2 m (47.2 in) cable terminated with 3.5 mm (0.14 in) jack plug.
