FM, UHF, DSSS & infrared transmitters |
Radiofrequency
base station transmitters |
|
| PPA
T35 FM next generation 87-channel base-station transmitter with
display |
 The T35 transmitter features a powerful microprocessor, sleek digital display, and easy-to-use menu controls. Quickly choose between Voice, Music, or Hearing Assistance in the Application Preset menu.
The T35 configures itself to the appropriate setting – taking the guess work out of complex audio installation. Operating up to 1000 feet, the T35 is ideal for auditoriums, stadiums, theaters, or other large venues where superior coverage is essential.
|
| PPA
T27 FM compact 17-channel base station transmitter, 72-76 MHz |
 The PPA T27 transmitter will broadcast a speaker's
voice, music program, or audio service wirelessly
up to 500 feet to a listening audience. Audience
participants use the optional R35, R35-8, or any
FM receiver operating on 72-76 MHz frequency to
pick up the broadcast.
The PPA T27 has 17 available
frequencies and features an LED display and push-button
channel selector. The speaker simply connects
a microphone with a 3.5mm plug into the unit to
broadcast their voice. Alternatively, the unit
can connect to a sound system through a line-level
(RCA) jack to broadcast music or other audio service.
|
| T800 Base Station Transmitter on 863MHz Range, 3 European Frequencies |
 The T800 FM transmitter will broadcast a speaker's voice, music program, or audio service wirelessly up to 122m (400ft) to a listening audience. Quick and easy setup: The installer simply connects a microphone with an XLR or 1/4" plug into the unit to broadcast their voice. Alternatively, the unit can connect to a sound system through a line-level (RCA) jack to broadcast music or other audio service.
The T800 features three channels on 863.250, 863.750 or 864.750 MHz. For simultaneous interpretation, up to three T800 transmitters may be installed in a single facility for broadcasting three languages with minimal crosstalk or interference.
Audience participants use the three-channel R863 FM receiver (optional) to pick up the broadcast for language interpretation or hearing assistance applications.
- Sleek backlit LED display
- Three channel selectable: 863.250/863.750/864.750 MHz
- Preconfigured for use with R863 3-channel receivers
- Push button menu controls
- Flexible XLR and 1/4" combo jack; line-level (RCA) input
- Headphone monitoring jack
- Meets DDA requirements for hearing assistance
- 3 year warranty (30 days on accessories)
|
| LT

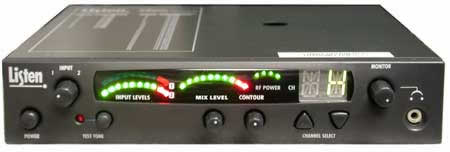

800-072 FM stationary transmitter |
 The LT-800 Stationary Transmitter in 72MHz frequency range broadcasts over 57 channels (40 narrowband & 17 wideband channels. Use up to 6 Listen LT-800 Stationary Transmitters in the 72 MHz band for simultaneous interpretation into 6 different languages.
LT-800 Description
LT-800 Specifications
LT-800 Data Sheet (PDF)
LT-800 User's Manual (PDF)
Listen User's Manual (PDF)
|
| LT
800-216 FM stationary transmitter |
The Listen LT-800 Stationary Transmitter in the 216MHz frequency range broadcasts over 57 channels (19 wideband, 38 narrowband channels). Use up to 3 Listen LT-800 Stationary Transmitters in the 216MHz band for simultaneous interpretation into 3 languages.
LT-800 Description
LT-800 Specifications
LT-800 Data Sheet (PDF)
LT-800 User's Manual (PDF)
Listen User's Manual (PDF)
|
| TC-RF1A-2 - DSSS 2-channel digital transmitter, 2.4 GHz |
 The microprocessor based TC-RFZ02
digital control unit is able to transmit 2 signal channels, featuring independent
channel level control, independent channel level
indicators, and independent channel outputs
for sound recording.
It transmits on the worldwide license-free
2.4 GHz frequency band and incorporates state-of-the-art Direct
Sequence Spread Spectrum (DSSS) technology
to deliver CD quality sound, provide excellent
immunity from both noise and interference, and
insure high security against unauthorized listening.
Multiple control units
can be cascaded together to transmit up to 16 audio
channels in a system.
|
| TC-RF1A-4 - DSSS 4-channel digital transmitter, 2.4 GHz |
The microprocessor based TC-RFZ04
digital control unit is able to transmit 4 signal channels, featuring independent
channel level control, independent channel level
indicators, and independent channel outputs
for sound recording.
It transmits on the worldwide license-free
2.4 GHz frequency band and incorporates state-of-the-art Direct
Sequence Spread Spectrum (DSSS) technology
to deliver CD quality sound, provide excellent
immunity from both noise and interference, and
insure high security against unauthorized listening.
Multiple control units
can be cascaded together to transmit up to 16 audio
channels in a system.
|
| AL-TX 16-channel
UHF, 682-698MHz |
|
Radiofrequency mobile transmitters |
| PPA T36 Body Pack Transmitter, 72-76 MHz, 16 Selectable Channels, Mute Switch, Compression, Auxiliary Input, Frequency Lock, Cable Included |
 The Personal PA(TM) T36 transmitter will broadcast a speaker's voice or audio program on one of sixteen available channels, 72-76 MHz, to listeners using a R33, R35, R35-8, R36 or R1600 receiver.
The unit features flexible mic and auxiliary inputs, push-button on/off/mute controls, channel lock and selectable compression. Lightweight and portable, the PPA T36 will operate up to 150 feet (46 m) from the listening audience.
It is ideal for providing hearing assistance for students in the classroom, tour group participants, employee training, business meetings and more.
- Sixteen-channel Selectable, 72-76 MHz
- Digitally Synthesized Frequencies
- Portable, Lightweight, Stylish Design
- Accepts Electret Mic with 3.5mm Mono Plug or Audio Source (MP3, CD player) with 2.5mm Plug
- Range of Up to 150' (45.7 m)
- Push-button On/Off/Mute Control
- Flashing Mute and Low Battery Indicator
- Operates in Normal or Compress (2:1) Mode
- Individual Mic and Auxiliary Volume Controls
- Channel Lock Switch
- Belt Clip for Hands-free Operation
- Five Year Warranty (90 days on accessories)
** NOTE: The Personal PA system is approved by the FCC for operation in U.S. markets. The Personal PA can not be used in all countries. Check with your government?s radio regulations for 72 - 76 MHz operation. **
|
| Williams Sound T1-216 ONE 2 ONE™ Tour Guide Body Pack Transmitter |
 The PPA T1-216 is a narrowband, single-channel, body-pack style transmitter that
operates on the 216 MHz bandwidth. The T1-216 will operate up to 100-300 feet
and accommodate any number of users with additional receivers.
The T1-216
features an impact-resistant case and a belt clip for hands-free operation. Each
transmitter is frequency synthesized and crystal controlled for rock-solid
tuning. Each transmitter features drop-in charging points, which allows up to 16
units to be charged at once in a single CHG 1600 multi-charger. The T1-216 is
portable, requires no installation, and is available with a variety of
microphone options.
|
T863 FM 3-Channel Selectable Transmitter with Belt Clip, 2AA batteries, No Microphone |
 The T863 is a portable, body-pack style FM transmitter with user-selectable operating frequencies of 863.25 MHz, 863.75 MHz, or 864.75 MHz. The T863 will operate up to 30 meters (98 feet) when used with Williams Sound?s R863 receiver. The transmitter is showcased in a black, ergonomic, impact-resistant case, and is belt clip equipped for hands-free operation. Controls include an integrated on/off/channel switch, 3.5mm mic jack, and battery ON indicator LED. Drop-in charging points allow up to 12 transmitters to be charged at once in the optional CHG 3512 multi-charger. The T863 operates on two AA batteries for up to 20 hours, or 15 hours per charge when used with Williams Sound rechargeable batteries. The T863 will accommodate a variety of microphone options.
NOTE: The operating frequency on the T863 transmitter is optimized for European markets. The transmitter can not be used in all countries. Check with your government?s radio regulations for 863 MHz operation.
|
| Williams Sound PFM T32: 16-Channel Body-Pack Transmitter w/mute switch |
 The PFM T32 transmitter will broadcast the speaker’s voice directly to an individual or group member equipped with a wideband, 72-76 MHz compatible receiver. Lightweight, portable, the PFM T32 will operate up to 150 feet from the listening audience. It is ideal for providing hearing assistance for students in the classroom, tour group participants, or employees for training consultation. The PFM T32 is field tuneable up to 16 channels. It features a microphone mute switch, power ON indicator, an internal mic gain and compression control.
|
| Listen
Technologies LT-700: 57-Channel Portable Transmitter |
The
LT-700 Portable Transmitter is a belt pack unit
operating exactly as a stationary transmitter,
without the wires! It broadcasts over a choice of 57 channels
(40 narrowband & 17 wideband channels on the
72 MHz frequency band, and 19 wideband, 38 narrowband
channels on the 216 MHz frequency band)The LT-700 Portable Transmitter
will broadcast to receivers up to 150 feet away.Perfect for tour groups, whisper
interpretation, and mobile language interpretation.
LT-700
Specifications (PDF Format) |
| Anchor
Audio WB-6000 UHF Body Pack Transmitter |
 UHF
body pack transmitter ? 16 User Selectable UHF Channels ? ADA Compliant ? Unlimited Number Of Users ? Storage Case Available Up to 300' Range
|
Infrared transmitters |
|

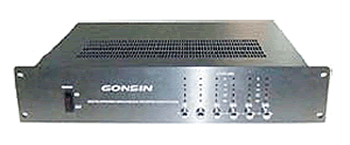

TC-Z906 - 6-channel infrared transmitter |
 The microprocessor based TC-Z906 infrared transmitter is able to modulate and transmit 6 sound
channels to different carrier frequencies.
It features built-in IR test diodes for audio monitoring and
testing of receivers, built-in automatic level control (ALC) to ensure comfortable listening levels,
independent channel level control, independent channel output level LED indicators, and independent
channel audio output sockets for sound recording.
Test mode produces a different frequency tone for
each input/channel. Up to five interpreter consoles can be connected to the transmitter in one single
daisy chain. Infrared radiators can be linked up in two lines via two BNC sockets on the rear panel.
|
TC-Z904 - 4-channel infrared transmitter |
 The TC-Z904V infrared
transmitter is a microprocessor based central
unit which is designed to modulate and transmit
4 sound channels to different carrier frequencies.
It features built-in IR test diodes for audio
monitoring and testing of receivers, independent
channel volume control, independent channel output
level indicators, and independent channel
audio output for sound recording.
Test
mode produces a different frequency tone for each
input/channel. Two BNC sockets can link up infrared
radiators in two lines. Multiple interpreter consoles
can be connected to the transmitter in a daisy
chain.
|
TC-Z902 - 2-channel infrared transmitter |
The TC-Z902V infrared
transmitter is a microprocessor based central
unit which is designed to modulate and transmit
2 sound channels to different carrier frequencies.
It features built-in IR test diodes for audio
monitoring and testing of receivers, independent
channel volume control, independent channel output
level indicators, and independent channel
audio output for sound recording.
Test
mode produces a different frequency tone for each
input/channel. Two BNC sockets can link up infrared
radiators in two lines. Multiple interpreter consoles
can be connected to the transmitter in a daisy
chain.
|
| MOD
232: 2-channel infrared transmitter 2.3/2.8/3.3/3.8 MHz |
Each microprocessor controlled MOD 232 modulator handles
two audio channels. Baseband outputs can daisy-chain
two MOD 232 together for four-channel operation.
Flexible
combination jacks permit balanced/unbalanced line-level
inputs. Carrier frequencies are controlled by the microprocessor
and a frequency synthesizer for rock-solid frequency
control.
|
| WIR TX90 2- Channel Integrated Transmitter and Radiator Unit, 2.3/2.8/3.3/3.8 MHz |
 The WIR TX90 combines modulator and emitter technology into a single operating unit. It is ideal for cinemas, auditoriums, courtrooms, schools and other large room facilities that require hearing assistance and simultaneous interpretation.
The WIR TX90 can transmit an audio signal up to 28,000 ft² (2,600 m²) throughout a listening area when used with Williams Sound’s WIR RX22-4 receiver. Additional emitters can be connected to the unit for unlimited coverage. 2.3-3.8 MHz operation makes it less susceptible to high efficiency lighting interference.
The WIR TX90 features a built-in application configuration control. The installer can quickly and easily setup the unit for the most common audio applications: voice, music, or hearing assistance. The WIR TX90 configures itself to the appropriate setting – taking the guesswork out of complex audio installation. May Be Used with Optional Receiver Models: WIR RX22-4 or WIR RX14-2.
|
|
| LT-82 single-channel infrared transmitter |
 The Listen LT-82 is the heart of a stationary IR listening system. It takes the desired audio signal and transmits the signal via coaxial cable to one or more IR radiator-emitters (LA-140).
The LT-82 can be operated in mono or stereo on one of four different carriers; up to four LT-82 units may be connected to provide up to four mono or stereo carriers to the radiator(s). The LT-82 generates DC power to power up to two LA-140 radiator-emitters.
Two LT-82 units can be rack mounted in one rack space using the LA-326 rack mounting kit. The LT-82 is used for government compliance (such as ADA), assistive listening, language interpretation, live theatre, houses of worship, courtrooms, secure rooms and for auditory description.
|
| DT-6008 - 8-channel digital infrared transmitter |
- The DT-6008 Digital Transmitter receives the audio input signals and modulates the digital signal.
- All system settings such as number of channels, channel quality and modulation frequency between 2 and 8 MHz are set on an LCD menu.
- There are six (6) BNC outputs to lead the signal to the radiators with RG59 cable.
- The capacity of the DT 6008 transmitter is eight (8) mono standard quality channels, four (4) stereo standard quality channels, four (4) mono premium quality channels, two (2) stereo premium quality channels or a mix of the above.
- The audio is inserted via regular unbalanced inputs and there is a headphone jack for monitoring. Two (2) additional audio inputs are available with emergency override for life safety messages.
DT-6008 Manual
|
| DT-6032 - 32-channel digital infrared transmitter |
- The DT-6032 Digital Transmitter receives the audio input signals and modulates the digital signal.
- All system settings such as number of channels, channel quality and modulation frequency between 2 and 8 MHz are set on an LCD menu.
- There are six (6) BNC outputs to lead the signal to the radiators with RG59 cable. The capacity of the DT 6032 transmitter is 32 mono standard quality channels, 16 stereo standard quality channels, 16 mono premium quality channels, eight (8) stereo premium quality channels or a mix of the above.
- The audio is inserted via regular unbalanced inputs and there is a headphone jack for monitoring. Two (2) additional audio inputs are available with emergency override for life safety messages.
DT-6032 Manual
|
| Bosch Integrus 4, 8, 16, and 32-channel digital infrared transmitters |
 The transmitter is the central element in the Integrus system. It accepts up to 32 audio sources and connects to the Interpreter’s Desk via the Interpreter Module. Multiple medium and high power radiators are connected and daisy chained to the transmitter to provide full coverage of any venue.
The Digital Stationary Transmitters are available in 4, 8, 16 and 32 channels. Each unit features a built-in mini infrared radiator for audio monitoring. Includes 19” rack mounting brackets, detachable feet and mounting accessories for modules. This transmitter interfaces with both analog and digital congress systems. A master/slave mode allows distribution of interpretations to adjacent rooms
|
|
|
