simultaneous interpretation

Barinas simultaneous interpretation equipment for sale and rent

For all your simultaneous interpretation needs




Translations Rentals Sales

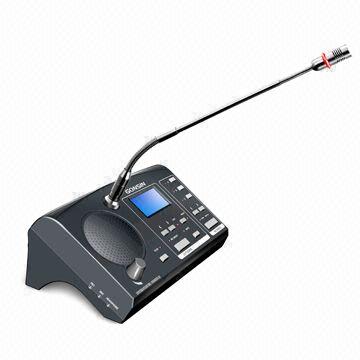

TC-F06 interpretation unit: Interpreter's Unit with Automatic Channel Interlocking Function and Built-in Loudspeaker

TC-F06 interpeter console

•The TC-F06 interpreter console is a digitally-controlled workstation allowing two interpreters to work in turn.
#Handles simultaneous interpretation for up to 6 different languages.
#Gooseneck microphone and headset microphone can be used
#Built-in loudspeaker with volume level control
#LCD screen for specific information display
#3.5mm jacks on both sides for MIC input and headphone/recording output
#3 incoming languages can be preset, with pre-select A/B/C keys.
#Automatic channel interlocking prevents interpreters from using same outgoing channel
#Relay interpretation allows the interpreters to work from an active channel other than the floor
#MUTE key to enable a brief muting of the microphone for cough cut
#SLOW key to alert the current speaker to speak slowly
#Loudspeaker is automatically switched off when MIC is on or headset is used
#The floor signal goes to each output channel after the microphone is switched off
#Multiple interpreter consoles can be connected in a daisy-chain
#Designed to comply with all related international standards & requirements.
#Frequency response: 50-18kHz
#Distortion at 1 kHz: < 0.1%
#Channel separation: > 85 dB
#Signal-to-noise ratio: > 90 dB
#Max. input power level: 7.5V
#Operating voltage: 24V
#Power consumption: 2.5W
# 8Ω/2W built-in loudspeaker
# Operating temperature: 0?-50?
# Standard mic stem length: 425 mm
# 128x64 backlit LCD screen
# 3/5/10m cable with DB25 connectors
# 3.5mm jacks for mic, headphone, recorder
# ABS base: 247 X 145 X 95mm

Use with:

DSSS Digital Radiofrequency Simultaneous Interpretation System

Digital Infrared Simultaneous Interpretation Systems

Digital Discussion/Simultaneous Interpretation Systems
