* Easy to set up and simple to operate
* Dual-shielded cable for interference resistance
* Multiple selectable microphone modes
* High-fidelity digital audio quality
* Easy selection of six language channels
* Central unit with built-in video matrix switcher
* Automatic camera control
* 8,000V (HBM) electrostatic discharge (ESD) resistance
* All circuit boards in anti-corrosive and moisture-resistant design
* Complies with the IEC industry standards

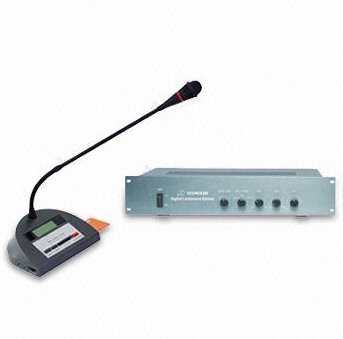

TL-VC4000

* Easy to set up and simple to operate
* Dual-shielded cable for interference resistance
* Multiple selectable microphone modes
* Multiple voting types and options
* Six channels language distribution
* High fidelity digital audio quality
* Central unit with built-in video matrix switcher
* Automatic camera control supported
* ESD (electrostatic discharge resistance): 8,000V (HBM)
* All circuit boards in anti-corrosive, moisture-proof design
* Complies with the IEC industry standards

�Key Specifications/Special Features:

* Interference-resistant with dual-shielded cable
* Simple push-to-talk operation
* High fidelity digital audio quality
* User identification by chip card
* Multiple selectable microphone modes
* Simultaneous active microphones from one to five
* Central unit with built-in video switcher
* Supports automatic camera tracking
* Complies with IEC industry standards

�Key Specifications/Special Features:

* Supports up to 65 terminals
* Maximum capacity of 250 terminals
* T-bus cable connection
* Dynamic LCD status display
* Frequency response: 50 to 18KHz
* Sensitivity: -46dB + 4dB (-4dB)
* Optimal pickup range: 10 to 30cm
* Delegate registration by key/button or chip card
* Microphone modes: request, waiting and free
* Voting modes: voting, evaluation and election

Main Features:

* Dual-shielded cable for interference resistance
* Multiple selectable microphone modes
* Superior high fidelity audio quality
* System can function with or without PC control
* Automatic camera tracking is supported
* All circuit boards in anti-corrosive, moisture-proof design

Key Specifications/Special Features:

* Interference resistant with dual shielded cable
* Simple push-to-talk operation
* High fidelity digital audio quality
* Three selectable operating modes
* Simultaneous active microphones from 1 to 5
* Supports automatic camera tracking
* Complies with IEC industry standards
* Easy to set up and simple to operate
* Multiple selectable microphone modes
* Built-in loudspeaker for each conference unit
* System can function with or without computer control
* Central unit with built-in video matrix switcher
* All circuit boards in anti-corrosive and moisture-resistant

The TL-V6000 digital conference system offers an integrated conferencing solution that combines microphone management, delegate discussion, attendee registration, chairman priority, LCD display, built-in loudspeaker, headphone monitoring, chipcard reading, video switching, camera tracking, digital recording and software control.

The basic system on one central control unit supports up to 60 delegate units and can be expanded to 200 delegate units with additional extension units.  Multiple control units can be cascaded together to support up to 1000 delegate units.

More information

�Key Specifications/Special Features:

* Single cable daisy-chain interconnection
* Interference-resistant with dual-shielded cable
* Simple push-to-talk operation
* High fidelity digital audio quality
* User identification by chip card
* Multiple selectable microphone modes
* Simultaneous active microphones from one to five
* Central unit with built-in video matrix switcher
* Supports automatic camera tracking
* Complies with IEC industry standards

�Main features:

* Easy to set up and simple to operate
* Dual-shielded cable for interference resistance
* Multiple selectable microphone modes
* Superior high fidelity audio quality
* System can function with or without PC/software control
* Automatic camera control is supported

TL-VCB6000 digital conference system offers a multi-functional integrated conferencing solution that combines microphone management, delegate discussion, electronic voting, simultaneous interpretation, language distribution, attendance registration, chairman priority, LCD display, built-in loudspeaker, headphone monitoring, chipcard reading, video switching, camera tracking, digital recording and software control.

The basic system on one central control unit supports up to 60 delegate units and 5 interpreter units, and can be expanded to 200 delegate units with additional extension units. Multiple control units can be cascaded together to support up to 1000 delegate units. It can seamlessly interface with GONSIN IR/DSSS wireless transmission system to provide simultaneous interpretation for additional participants.

TL-VCB6000 digital discussion system

Three selectable microphone modes are available for delegate discussion:

* OPEN - allows to select the number of delegate microphones from 1 to 4 which can be simultaneously active. The delegate microphones more than the preset number cannot be activated and are unable to register a request to speak.
FIFO - allows to select the number of delegate microphones from 1 to 4 which can be simultaneously active. On a FIFO (first in first out) basis, any delegate can override another delegate simply by activating the microphone, but cannot override the chairperson.

OPERATOR - allows to select the number of delegate microphones from 1 to 4 which can be simultaneously active. Up to 8 delegates more than the preset number can register a request and wait to speak, and can be switched off manually to cancel the request.

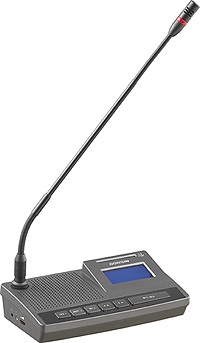

TLVDC6000 digital conferencing system

• Compact, attractive delegate unit
• Built-in fold-away flat-panel loudspeaker
• Five voting buttons
• Cable connections located underneath the unit

• Channel selector for accessing interpretations
• 2-digit channel indicator display with backlighting
• Two headphone sockets, and one external microphone/headset microphone socket
• Two volume controls (left and right)
• Incorporates all functions of LBB 3544/00 Standard Delegate Unit

• Graphic LCD screen with backlighting
• Chip-card reader
• Channel selector for accessing interpretations
• Displays messages and conference-related data
• Incorporates all functions of LBB 3545/00 Delegate Unit with Channel Selector

• Graphic LCD screen with backlighting
• Chip-card reader
• Channel selector for accessing interpretations
• Displays messages and conference-related data
• Incorporates all functions of LBB 3546/00 Delegate Unit

• Compact, attractive delegate discussion unit
• Microphone with flexible stem
• Built-in loudspeaker
• Two headphone sockets

• Channel selector for accessing interpretations
• 2-digit channel indicator display
• Two headphone sockets
• Incorporates all functions of LBB 3530/00 Delegate Discussion Unit.

• Channel selector for accessing interpretations
• 2-digit channel indicator display
• Two headphone sockets
• Incorporates all functions of LBB 3533/00 Chairman Discussion Unit

The LS-75 is a portable conference system for 29 delegates and one (1) chairman.

This system provides excellent sound quality and can operate either in automatic mixing (voice activation) mode or with delegate control. It is ideal for corporate training centers, rental companies and break-out or committee rooms that require voice activation.

The LS-75 system is fully functional without any additional parts, can be set up in a matter of minutes and does not require an operator.

• LS-75
• LS-75 Manual (PDF)

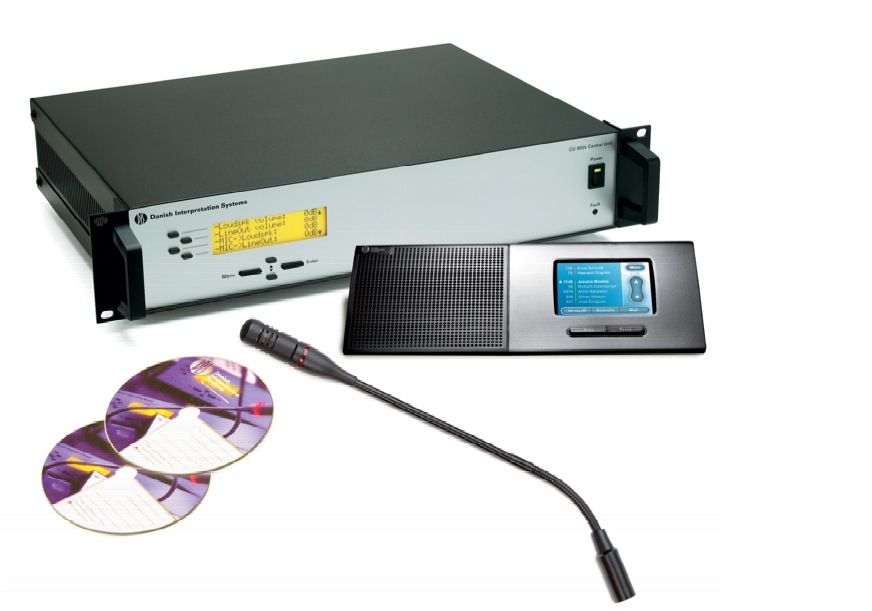

The LS-76 is a portable conference system with voting capabilities for 29 delegates and one (1) chairman.

This system provides excellent sound quality and is configured to operate with delegate and PC control. It is ideal for city and county councils, committee rooms and rental applications with audience response.

Each DC 6990 P microphone unit has a 3.5 in. (9 cm) touch-screen that can be configured per meeting for different voting facilities depending on the need. It also offers two (2) headphone jacks for assistive listening. s

The LS-77 is a portable conference system with language interpretation for 28 delegates and two (2) chairmen. This system provides excellent sound quality and is configured to operate with delegate and PC control. It is ideal for meetings and rental applications that require language interpretation. The two (2) delegates per conference unit will share one (1) microphone and microphone button, but each have their own channel selector and volume control for personal language and volume preference.

The LS-78 is a flush-mount conference system for 29 delegates and one (1) chairman. This system provides excellent sound quality and is configured to operate with either delegate or PC control. It is ideal for city and county councils, boardrooms or committee rooms. The flush-mount microphone and voting units will provide a professional custom look while offering complete functionality. With the extensive software, the operator can manage the microphones, assign delegate names to seats, prepare, run and record voting sessions and display the results on a screen.

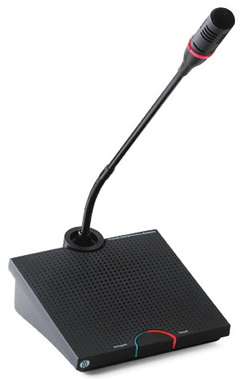

The DM 6010 P is a fully digital, portable delegate unit perfectly suited for permanent meeting rooms or temporary discussion-style meetings. The unit features a built-in loudspeaker and a fixed 15.8 in. (40 cm) gooseneck microphone with illuminated red ring to indicate microphone ON status.

Each unit enables participants to speak, register a request-to-speak and listen to other speakers. The unit can either be controlled by the microphone button or remotely by the operator/conference chair.

The gain/sensitivity of the microphone/loudspeaker can be remotely controlled by the operator. The microphone button is surrounded with an LED to indicate whether the unit is on (RED) or in the request-to-speak queue (GREEN). The loudspeaker is automatically switched off to prevent acoustic feedback when the microphone is active. The units can be easily daisy chained with shielded FTP or STP Cat-5e cables (sold separately).

• DM 6010
• DM 6010 Manual (PDF)

The DM 6060 P is a fully digital, portable delegate unit perfectly suited for permanent meeting rooms or temporary discussion-style meetings with language interpretation. The unit features a built-in loudspeaker and a fixed 15.8 in. (40 cm) gooseneck microphone with illuminated red ring to indicate microphone ON status and a channel selector with 3 letter language code.
Each unit enables a participant to speak, register a request-to-speak, listen to other speakers and listen to language channels (with an earpiece). The unit can either be controlled by the microphone button or remotely by the operator/conference chair. The gain/sensitivity of the microphone/loudspeaker can be remotely controlled by the operator. The microphone button is surrounded with an LED to indicate whether the unit is on (RED) or in the request-to-speak queue (GREEN). The loudspeaker is automatically switched off when the microphone is activated to prevent acoustic feedback. The units can be easily daisy chained with shielded FTP or STP Cat-5e cables (sold separately).

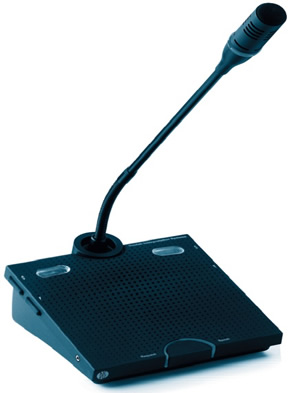

The DM 6070 P is a fully digital, portable delegate unit perfectly suited for permanent meeting rooms or temporary discussion-style meetings with language interpretation. The unit features a built-in loudspeaker and a fixed 15.8 in. (40 cm) gooseneck microphone with illuminated red ring to indicate microphone ON status and two (2) channel selectors with 3 letter language code.
Each unit enables participants to speak, register a request-to-speak, listen to other speakers and listen to language channels (with an earpiece). The unit can either be controlled by the microphone button or remotely by the operator/conference chair. The gain/sensitivity of the microphone/loudspeaker can be remotely controlled by the operator. The microphone button is surrounded with an LED to indicate whether the unit is on (RED) or in the request-to-speak queue (GREEN). The loudspeaker is automatically switched off when the microphone is activated to prevent acoustic feedback. The units can be easily daisy chained with shielded FTP or STP Cat-5e cables (sold separately).

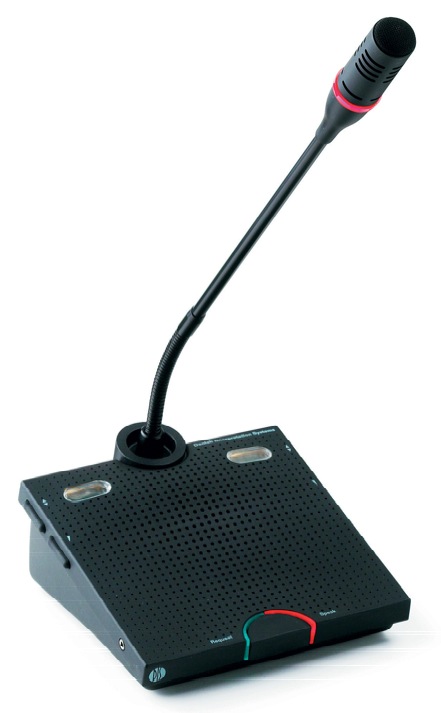

The CM 6070 P is a fully digital, portable chairman unit perfectly suited for permanent meeting rooms or temporary discussion-style meetings with language interpretation. The unit features a built-in loudspeaker and a fixed 15.8 in. (40 cm) gooseneck microphone with illuminated red ring to indicate microphone ON status and two (2) channel selectors with 3 letter language code.
Each unit enables the conference chair to speak, register a request-to-speak, listen to other speakers, listen to language channels (with an earpiece) and override delegates with the priority button. The unit can either be controlled by the microphone button or remotely by the operator. The gain/sensitivity of the microphone/loudspeaker can be remotely controlled by the operator. The microphone button is surrounded with an LED to indicate whether the unit is on (RED) or in the request-to-speak queue (GREEN). The loudspeaker is automatically switched off to prevent acoustic feedback when the microphone is active. The units can be easily daisy chained with shielded FTP or STP Cat-5e cables (sold separately).

The DM 6090 P is a fully digital, portable delegate unit perfectly suited for permanent meeting rooms or temporary discussion-style meetings with language interpretation. The unit features a built-in loudspeaker, a 3 pin XLR connector for a pluggable gooseneck microphone (sold separately) and two (2) channel selectors with 3 letter language code.
Each unit enables participants to speak, register a request-to-speak, listen to other speakers and listen to language channels (with an earpiece). The unit can either be controlled by the microphone button or remotely by the operator/conference chair. The gain/sensitivity of the microphone/loudspeaker can be remotely controlled by the operator. The microphone button is surrounded with an LED to indicate whether the unit is on (RED) or in the request-to-speak queue (GREEN). The loudspeaker is automatically switched off when the microphone is activated to prevent acoustic feedback. The units can be easily daisy chained with shielded FTP or STP Cat-5e cables (sold separately).

The CM 6090 P is a fully digital, portable chairman unit perfectly suited for permanent meeting rooms or temporary discussion-style meetings with language interpretation. The unit features a built-in loudspeaker, a 3 pin XLR connector for a pluggable gooseneck microphone (sold separately) and two (2) channel selectors with 3 letter language code.
Each unit enables the conference chair to speak, register a request-to-speak listen to other speakers, listen to language channels (with an earpiece) and override delegates with the priority button. The unit can either be controlled by the microphone button or remotely by the operator. The gain/sensitivity of the microphone/loudspeaker can be remotely controlled by the operator. The microphone button is surrounded with an LED to indicate whether the unit is on (RED) or in the request-to-speak queue (GREEN). The loudspeaker is automatically switched off to prevent acoustic feedback when the microphone is active. The units can be easily daisy chained with shielded FTP or STP Cat-5e cables (sold separately).

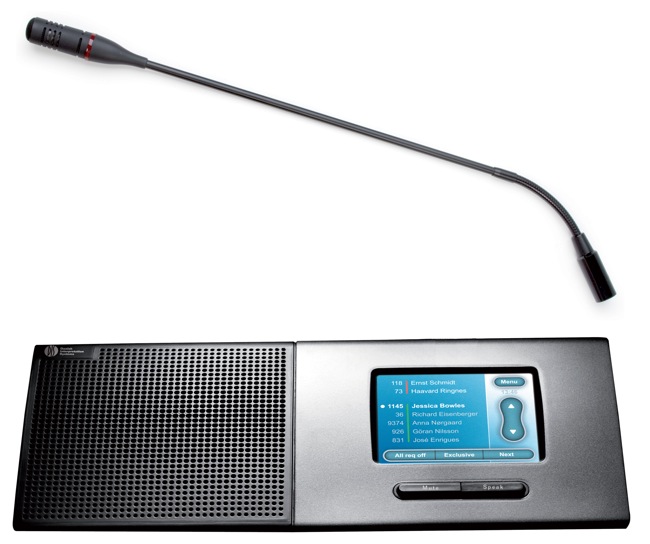

The DC 6990 P is a fully digital portable conference unit perfect for permanent or temporary meetings with speech, voting and/or language interpretation. The unit features a built-in loudspeaker, a 3 pin XLR connector for a pluggable gooseneck microphone (sold separately), two channel selectors, two microphone buttons and a large 3.5 in. (89 mm) high resolution color touchscreen. The touchscreen can be customized for one (1) or two (2) meeting participants to vote, to select an interpretation channel, to log-in (optionally via chip card) and show speaker list, agenda or voting results. This gives the flexibility for the meeting organizer to tailor the functionality of the unit to each and every meeting.
The unit can either be controlled by the delegates or remotely by the operator/conference chair. The gain/sensitivity of the microphone/loudspeaker can be remotely controlled by the operator. The microphone button is surrounded with an LED to indicate whether the unit is on (RED) or in the request-to-speak queue (GREEN). The loudspeaker is automatically switched off when the microphone is activated to prevent acoustic feedback. When the unit is configured as a chairman, the second microphone button transforms to a priority override. The ingenious design of the unit is not only elegant but also provides the option to attach a name plate or logo. The units can be easily daisy chained with shielded FTP or STP Cat-5e cables (sold separately).

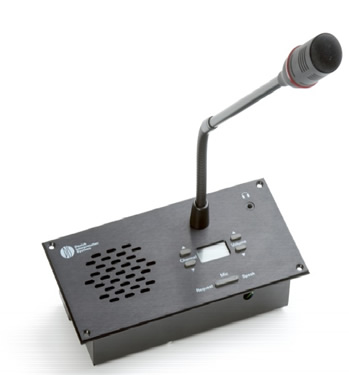

The DM 6060 F Delegate Flush Unit is a cost-effective way to permanently flush mount a loudspeaker, a fixed microphone with microphone button and a channel selector. Made of black anodized aluminum, the unit is very unobtrusive. Each unit enables participants to speak, register a request-to-speak, listen to other speakers and listen to language channels. The unit can either be controlled by the microphone button or remotely by the operator/conference chair. The gain/sensitivity of the microphone/loudspeaker can be remotely controlled by the operator. The microphone button contains an LED to indicate whether the unit is on (RED) or in the request-to-speak queue (GREEN). The loudspeaker is automatically switched off when the microphone is activated to prevent acoustic feedback. Mounting is easy with available screw holes on all corners of the unit. The units can be easily daisy chained with shielded FTP or STP Cat-5e cables (sold separately) and can be customized to fit any application.

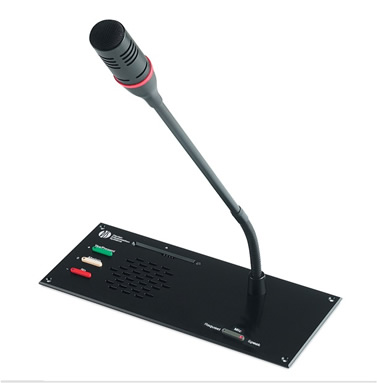

The DM 6510 F Delegate Flush Unit is a cost-effective way to permanently flush mount a loudspeaker, a fixed microphone with microphone button, yes/no/abstain voting buttons and chip card reader. Made of black anodized aluminum, the unit is very unobtrusive. Each unit enables participants to speak, register a request-to-speak, listen to other speakers and cast a vote.
The unit can either be controlled by the microphone button or remotely by the operator/conference chair. The gain/sensitivity of the microphone/loudspeaker can be remotely controlled by the operator. The microphone button contains an LED to indicate whether the unit is on (RED) or in the request-to-speak queue (GREEN). The loudspeaker is automatically switched off when the microphone is activated to prevent acoustic feedback. Mounting is easy with available screw holes on all corners of the unit. The units can be easily daisy chained with shielded FTP or STP Cat-5e cables (sold separately) and can be customized to fit any application.

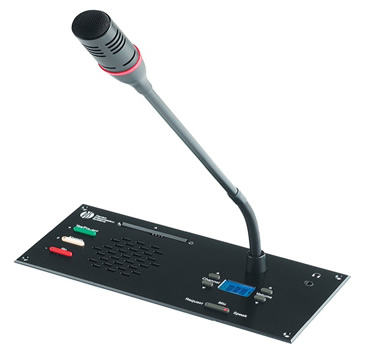

The DM 6560 F Delegate Flush Unit is a cost-effective way to permanently flush mount a loudspeaker, a fixed microphone with microphone button, yes/no/abstain voting buttons, a channel selector and chip card reader. Made of black anodized aluminum, the unit is very unobtrusive. Each unit enables participants to speak, register a request-to-speak, listen to other speakers, cast a vote and listen to language channels.
The unit can either be controlled by the microphone button or remotely by the operator/conference chair. The gain/sensitivity of the microphone/loudspeaker can be remotely controlled by the operator. The microphone button contains an LED to indicate whether the unit is on (RED) or in the request-to-speak queue (GREEN). The loudspeaker is automatically switched off when the microphone is activated to prevent acoustic feedback. Mounting is easy with available screw holes on all corners of the unit. The units can be easily daisy chained with shielded FTP or STP Cat-5e cables (sold separately) and can be customized to fit any application.

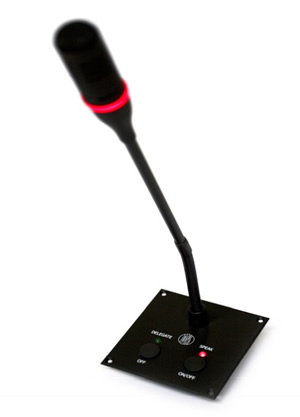

The FC 4011 F Chairman Flush Panel is a cost-effective way to permanently flush mount a microphone, microphone button and priority override button. Made of 2.5 mm black anodized aluminum, the panel is very unobtrusive. The unit enables conference chairs to speak, register a request-to-speak and override delegates with the priority button. The unit can either be controlled by the microphone button or remotely by the operator. Mounting is easy with available screw holes on all four corners of the unit. A single 3.3 ft. (1 m) cable is provided to connect to the under-the-table MU 4040 (CDS 4000) or MU 6040 C (DCS 6000) control box. The panel can be customized to fit your specific application.

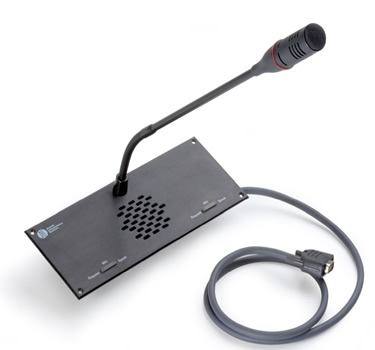

The FD 4010 F Delegate Flush Panel is a cost-effective way to permanently flush mount a loudspeaker, a microphone and microphone button. Made of 2.5 mm black anodized aluminum, the panel is very unobtrusive. Each unit enables participants to speak, register a request-to-speak and listen to other speakers. The unit can either be controlled by the delegate with the microphone button or remotely by the operator/conference chair. The loudspeaker is automatically switched off when the microphone is activated to prevent acoustic feedback. Mounting is easy with available screw holes on all four corners of the unit. A single 3.3 ft. (1 m) cable is provided to connect to the under-the-table MU 4040 (CDS 4000) or MU 6040 C/D (DCS 6000) control box. The panel can be customized to fit your specific application.

Specifications

Specifications

Specifications

Specifications

Specifications

Specifications

Specifications

•The FC 4010 F Chairman Flush Panel is a cost-effective way to permanently flush mount a loudspeaker, a microphone, microphone button and priority override button. Made of 2.5 mm black anodized aluminum, the panel is very unobtrusive.

The unit enables conference chairs to speak, register a request-to-speak, listen to other speakers and override delegates with the priority button. The unit can either be controlled by the microphone button or remotely by the operator.

The loudspeaker is automatically switched off when the microphone is activated to prevent acoustic feedback. Mounting is easy with available screw holes on all four corners of the unit. A single 3.3 ft. (1 m) cable is provided to connect to the under-the-table MU 4040 (CDS 4000) or MU 6040 C (DCS 6000) control box. The panel can be customized to fit your specific application.
