This is an economic, high-quality electronic microphone system. The interface is user-friendly, the plug and play design is simple to install and extremely versatile. The system can be configured to allow up to 150 microphones (50 microphones per central control unit at a maximum of 3 CCU's per system) and the double headphone socket and flexible microphone stem allows two people to use the same delegate unit. Settings for microphone prioritization and number of open microphones allows for automatic management of the proceedings. The CCS 800 is best suited for small-to-medium sized meetings and conferences such as local government councils, hotel conference rooms, training and educational venues and company board rooms.

More information

More information

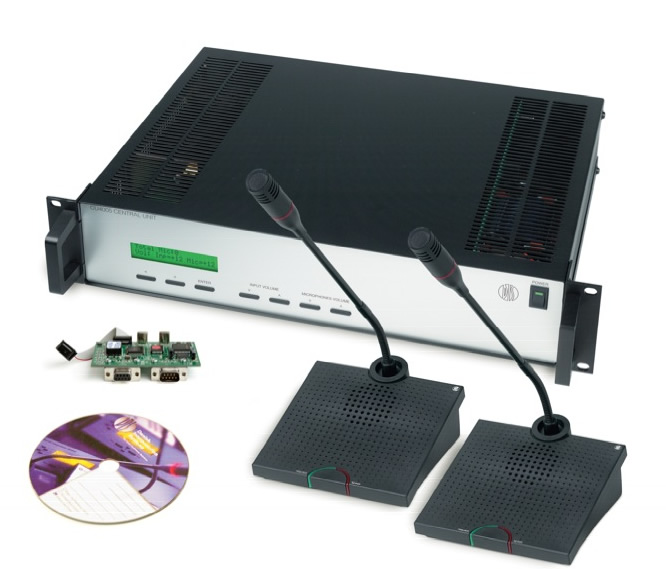

The LS-71 is a portable conference system for 98 delegates and two (2) chairmen. This system operates in push-to-talk mode and is by far the easiest and most cost-effective way to place one hundred microphones in one room. It is ideal for corporate training centers, rental companies and break-out or committee rooms. The LS-71 system is fully functional without any additional parts and can be set up in a matter of minutes. It can be operated stand-alone or by PC with an operator.

More information

The LS-75 is a portable conference system for 29 delegates and one (1) chairman. This system provides excellent sound quality and can operate either in automatic mixing (voice activation) mode or with delegate control. It is ideal for corporate training centers, rental companies and break-out or committee rooms that require voice activation. The LS-75 system is fully functional without any additional parts, can be set up in a matter of minutes and does not require an operator.

More information

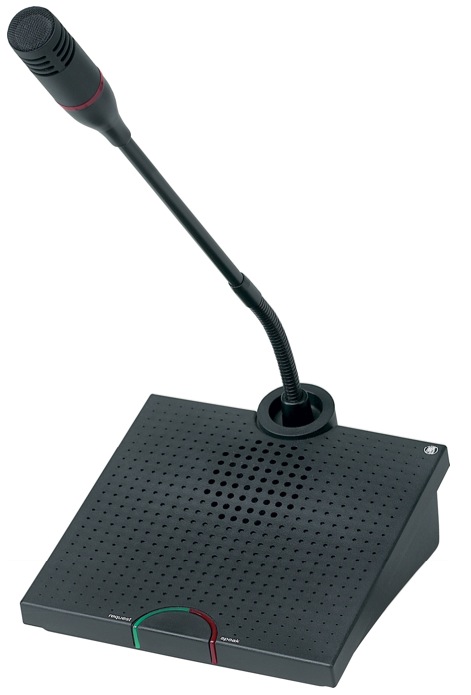

The CM 4410 P is a portable conference chairman unit perfectly suited for permanent meeting rooms or temporary discussion-style meetings. The unit features a built-in high-quality loudspeaker and a fixed 14.2 in. (36 cm) gooseneck microphone with illuminated red ring to indicate microphone ON status. Each unit enables the conference chair to speak, register a request-to-speak, listen to other speakers and override delegates with the priority button. The unit can either be controlled by the microphone button or remotely by the operator. The microphone button has two LEDs to indicate whether the unit is on (RED) or in the request-to-speak queue (GREEN). The loudspeaker is automatically switched off when the microphone is activated to prevent acoustic feedback. A 6.6 ft. (2.0 m) cable is permanently connected to each unit to allow for quick and easy installation of units.

More information

The DM 4410 P is a portable conference delegate unit perfectly suited for permanent meeting rooms or temporary discussion-style meetings. The unit features a built-in high-quality loudspeaker and a fixed 14.2 in. (36 cm) gooseneck microphone with illuminated red ring to indicate microphone ON status. Each unit enables participants to speak, register a request-to-speak and listen to other speakers. The unit can either be controlled by the delegate by the microphone button or remotely by the operator/conference chair. The microphone button has two LEDs to indicate whether the unit is on (RED) or in the request-to-speak queue (GREEN). The loudspeaker is automatically switched off when the microphone is activated to prevent acoustic feedback. A 6.6 ft. (2.0 m) cable is permanently connected to each unit to allow for quick and easy installation of units.

More information

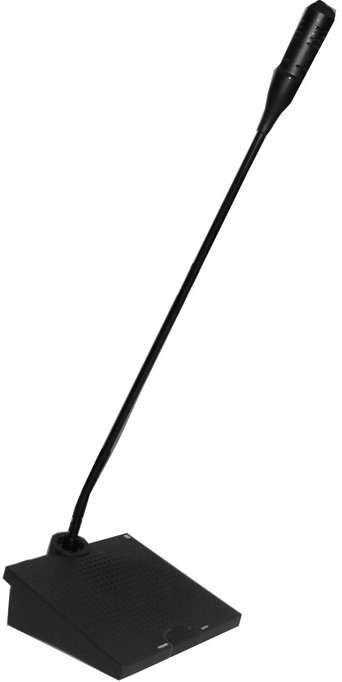

The DM 4450 P is a portable conference delegate unit perfectly suited for permanent meeting rooms or temporary discussion-style meetings. The unit features a built-in high-quality loudspeaker and a fixed 19.7 in. (50 cm) gooseneck microphone with illuminated red ring to indicate microphone ON status. Each unit enables participants to speak, register a request-to-speak and listen to other speakers. The unit can either be controlled by the delegate, via the microphone button, or remotely by the operator. The microphone button has two LEDs to indicate whether the unit is on (RED) or in the request-to-speak queue (GREEN). The loudspeaker is automatically switched off when the microphone is activated to prevent acoustic feedback. A 6.6 ft. (2.0 m) cable is permanently connected to each unit to allow for quick and easy installation of units.

More information

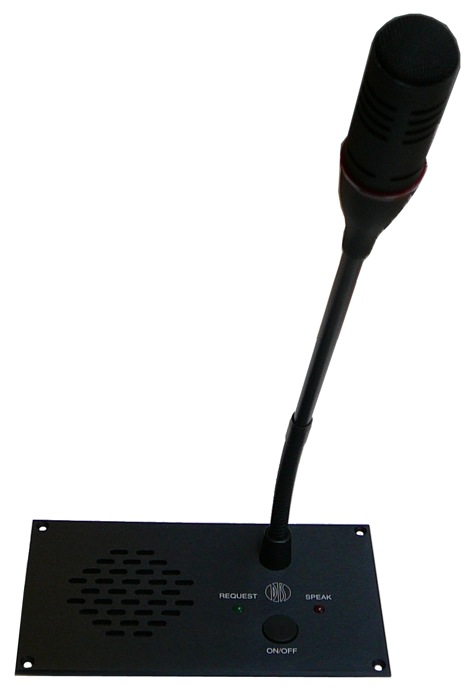

The FD 4010 F Delegate Flush Panel is a cost-effective way to permanently flush mount a loudspeaker, a microphone and microphone button. Made of 2.5 mm black anodized aluminum, the panel is very unobtrusive. Each unit enables participants to speak, register a request-to-speak and listen to other speakers. The unit can either be controlled by the delegate with the microphone button or remotely by the operator/conference chair. The loudspeaker is automatically switched off when the microphone is activated to prevent acoustic feedback. Mounting is easy with available screw holes on all four corners of the unit. A single 3.3 ft. (1 m) cable is provided to connect to the under-the-table MU 4040 (CDS 4000) or MU 6040 C/D (DCS 6000) control box. The panel can be customized to fit your specific application.

More information

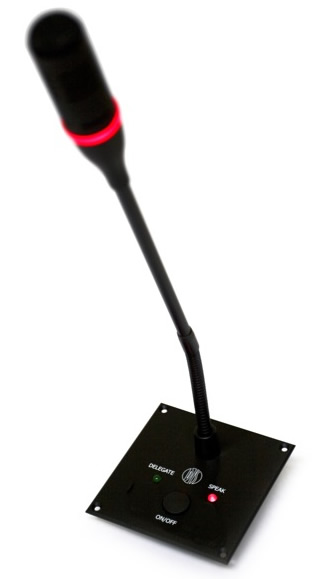

The FD 4011 F Delegate Flush Panel is a cost-effective way to permanently flush mount a microphone and microphone button. Made of 2.5 mm black anodized aluminum, the panel is very unobtrusive. Each unit enables participants to speak and register a request-to-speak. The unit can either be controlled by the delegate with the microphone button or remotely by the operator/conference chair. Mounting is easy with available screw holes on all four corners of the unit. A single 3.3 ft. (1 m) cable is provided to connect to the under-the-table MU 4040 (CDS 4000) or MU 6040 C/D (DCS 6000) control box. The panel can be customized to fit your specific application.

More information

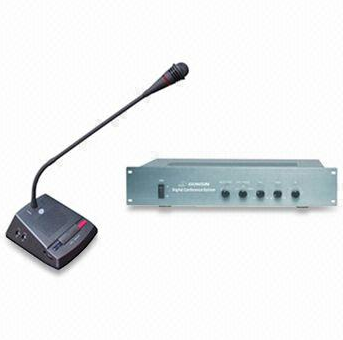

* Interference resistant with dual shielded cable
* Simple push-to-talk operation
* High fidelity digital audio quality
* Three selectable operating modes
* Simultaneous active microphones from 1 to 5
* Supports automatic camera tracking
* Complies with IEC industry standards
* Easy to set up and simple to operate
* Multiple selectable microphone modes
* Built-in loudspeaker for each conference unit
* System can function with or without computer control
* Central unit with built-in video matrix switcher
* All circuit boards in anti-corrosive and moisture-resistant

More information

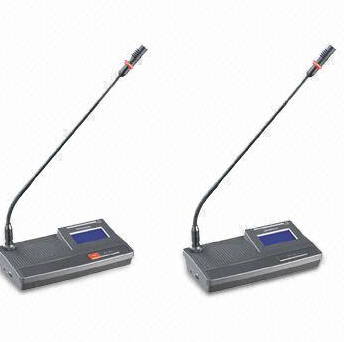

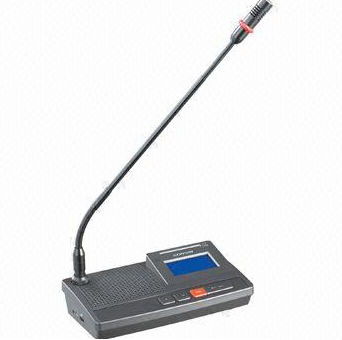

* Integrated with microphone discussion and electronic voting
* LCD display
* Internal loudspeaker
* Headphone monitoring
* Pluggable stem
* Chip-card reading
* Video switching and camera tracking
* Digital recording and software control
* Used for multi-functional conferencing solution

More information

* Supports up to 65 terminals
* Maximum capacity of 250 terminals
* T-bus cable connection
* Dynamic LCD status display
* Frequency response: 50 to 18KHz
* Sensitivity: -46dB + 4dB (-4dB)
* Optimal pickup range: 10 to 30cm
* Delegate registration by key/button or chip card
* Microphone modes: request, waiting and free
* Voting modes: voting, evaluation and election

More information

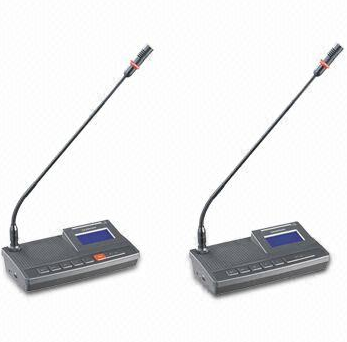

* Integrated with microphone discussion and electronic voting
* LCD display
* Internal loudspeaker
* Headphone monitoring
* Pluggable stem
* Chip-card reading
* Video switching and camera tracking
* Digital recording and software control
* Used for multi-functional conferencing solution

More information

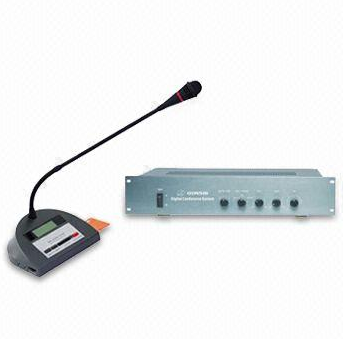

* Easy to set up and simple to operate
* Dual-shielded cable for interference resistance
* Multiple selectable microphone modes
* High-fidelity digital audio quality
* Easy selection of six language channels
* Central unit with built-in video matrix switcher
* Automatic camera control
* 8,000V (HBM) electrostatic discharge (ESD) resistance
* All circuit boards in anti-corrosive and moisture-resistant design
* Complies with the IEC industry standards

More information

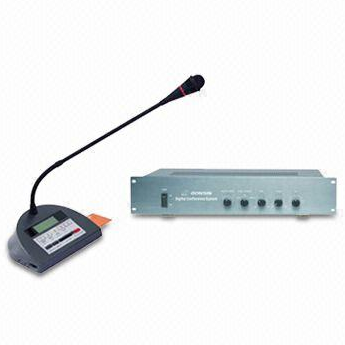

* Easy to set up and simple to operate
* Dual-shielded cable for interference resistance
* Multiple selectable microphone modes
* Multiple voting types and options
* Six channels language distribution
* High fidelity digital audio quality
* Central unit with built-in video matrix switcher
* Automatic camera control supported
* ESD (electrostatic discharge resistance): 8,000V (HBM)
* All circuit boards in anti-corrosive, moisture-proof design
* Complies with the IEC industry standards

More information

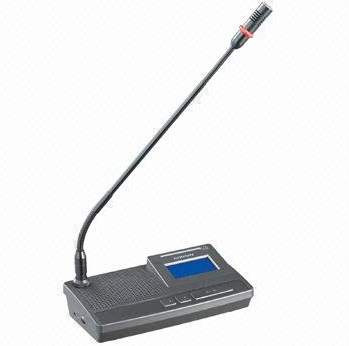

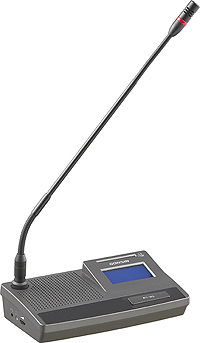

* Any delegate unit can be preset as vice-chairman unit
* Push button for attendance registration & mic on/off
* 5 buttons for yes/no/abstain and multi-choice voting
* Up/down buttons for 6-language channel selection
* Unidirectional electret condenser microphone
* Red ring luminant to indicate active microphone
* Pluggable gooseneck microphone stem
* Built-in 2W/8Ω loudspeaker w/ level control
* 3.5 mm jacks for earphone & recording w/ level control
* Loudspeaker is auto turned off when mic is on or earphone is connected
* 65x32mm back-lit LCD screen
* Built-in chipcard reader for user identification
* Supports automatic video camera tracking
* Frequency response: 50-18kHz
* S/N ratio: -95dB/1mV
* Sensibility: -46±4dB
* Power input: 24V DC
* Effective pick-up range: 0-600 mm
* Standard stem length: 425 mm
* Dimensions: 205*60*130mm (W*H*D)
* 13-p captive cable length: 1.5m

More information

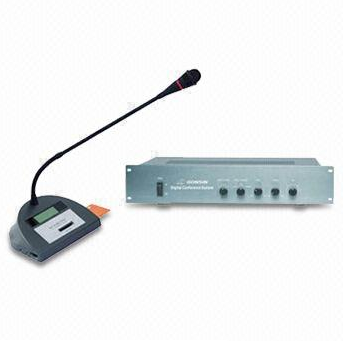

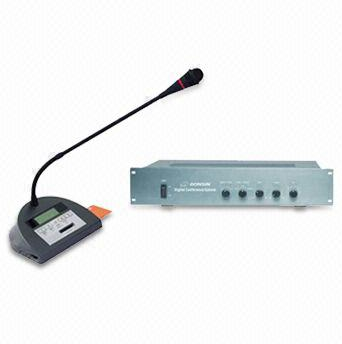

* Single cable daisy-chain interconnection
* Interference-resistant with dual-shielded cable
* Simple push-to-talk operation
* High fidelity digital audio quality
* User identification by chip card
* Multiple selectable microphone modes
* Simultaneous active microphones from one to five
* Central unit with built-in video matrix switcher
* Supports automatic camera tracking
* Complies with IEC industry standards

More information

* For flush mount installation
* Supports up to 70 terminals
* Maximum capacity of 150 terminals
* T-bus cable connection
* Dynamic LCD status display
* Frequency response: 50Hz to 18kHz
* Sensitivity: -46dB + 4dB (-4dB)
* Optimal pickup range: 10 to 30cm
* Delegate registration by key/button or chip card
* Microphone modes: request, waiting and free
* Voting modes: voting, evaluation and election

More information

• * Push button for attendance registration & mic on/off
* Priority button to mute/override active delegate units
* 5 buttons for yes/no/abstain and multi-choice voting
* Up/down buttons for 6-language channel selection
* Unidirectional electret condenser microphone
* Red ring luminant to indicate active microphone
* Pluggable gooseneck microphone stem
* Built-in 2W/8Ω loudspeaker w/ level control
* 3.5 mm jacks for earphone & recording w/ level control
* Loudspeaker is auto turned off when mic is on or earphone is connected
* 65x32mm back-lit LCD screen
* Built-in chipcard reader for user identification
* Supports automatic video camera tracking
* Frequency response: 50-18kHz
* S/N ratio: -95dB/1mV
* Sensibility: -46±4dB
* Power input: 24V DC
* Effective pick-up range: 0-600 mm
* Standard stem length: 425 mm
* Dimensions: 205*60*130mm (W*H*D)

More information

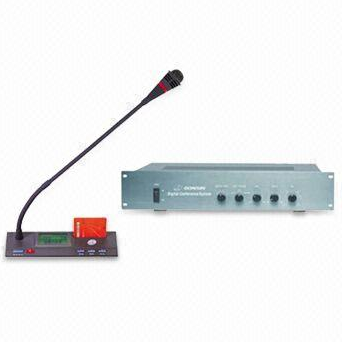

* Interference-resistant with dual-shielded cable
* Simple push-to-talk operation
* High fidelity digital audio quality
* User identification by chip card
* Multiple selectable microphone modes
* Simultaneous active microphones from one to five
* Central unit with built-in video switcher
* Supports automatic camera tracking
* Complies with IEC industry standards

More information

•The Central Control Unit (CU) powers and controls the conference units, mixes the audio, distributes simultaneous interpretation language channels and conducts voting sessions. The Medium Power CU can power approximately 40 conference units. The standard control capacity of 50 delegate units with 4 language channels can be expanded with feature licenses to 500 units with 16 languages. System settings such as operating modes (Automatic, FIFO, Manual and VOX) are accessible via the menu on the front of the CU.
A PC or 3rd party control device (AMX/Crestron) can be connected to the Central Control Unit to bring greater sophistication to the conference. In the event of PC failure, the Central Unit will revert to its stand-alone operation mode, enabling the conference to proceed.
The CU features two (2) RJ-45 outputs for DCS-LAN chains and has one (1) balanced audio input (line level) and one (1) balanced audio output (line level) which can be configured as; Mic In, Recording Out, Mix-Minus or Insertion. If more audio outputs are required such as recording or distributing interpretation channels, an optional four (4) output card can be added (AO 6004). Multiple CU 6005 units can be combined for room combining or to create larger systems.

•The Central Control Unit (CU) powers and controls the conference units, mixes the audio, distributes simultaneous interpretation language channels and conducts voting sessions. The High Power CU can power approximately 150 conference units. The standard control capacity of 50 delegate units with 4 language channels can be expanded with feature licenses to 3,800 units with 32 languages. System settings such as operating modes (Automatic, FIFO, Manual and VOX) are accessible via the menu on the front of the CU.
A PC or 3rd party control device (AMX/Crestron) can be connected to the Central Control Unit to bring greater sophistication to the conference. In the event of PC failure, the Central Unit will revert to its stand-alone operation mode, enabling the conference to proceed.
The CU features four (4) RJ-45 outputs for DCS-LAN chains and has one (1) balanced audio input (line level) and one (1) balanced audio output (line level) which can be configured as; Mic In, Recording Out, Mix-Minus or Insertion. Multiple CU 6011 units can be combined for room combining or to create larger systems.

•The AO 6004 Audio Output Unit outputs four (4) floor or language channels to IR language distribution systems, RF transmitters, recording and/or web-streaming devices. By default the channels 0-3 are selected but the audio properties and channels can be changed by the SW 6000 on a PC. The units can be easily daisy-chained in the DCS-LAN with shielded FTP or STP Cat-5e cables (sold separately). The AO 6004 can be free-standing, mounted in a 19" rack or into the CU 6005 expansion slot.

•The AO 6008 Audio Output Unit outputs eight (8) floor or language channels to IR language distribution systems, RF transmitters, recording and/or web-streaming devices. Most settings are accessible via an easily navigable menu on the front of the AO. The audio properties can also be controlled by a PC or 3rd party control device (AMX/Crestron). The units can be easily daisy-chained in the DCS-LAN with shielded FTP or STP Cat-5e cables (sold separately).
